AF-102M 1HP 2 IMPELLER PADDLE WHEEL AERATOR

Short Description:

Utilizes one set of impellers for enhanced rotation, ensuring efficient oxygenation.

Features a copper core motor and all-copper wire design for stable performance and extended working time.

High-precision rotor significantly prolongs the machine’s service life, offering durability and wear resistance.

Equipped with high-precision double bearings for smooth operation with minimal noise.

Anti-aging, high-performance, and durable construction ensure reliable long-term operation.

Send email to us

Product Detail

Product Tags

Spec Sheet

MODEL	SPEC	AF-102M
MOTOR	Power	1HP,0.75KW, 36 Slot, 9 Spline
	Voltage	1PH / 3PH Customized
	Speed	1450/1770RPM
	Frequency	50/60 Hz
	Insulation Level	F
	Screws	#304 Stainless Steel
	High temp resistance	Copper Wire, Bearing, Grease Can Bear 180 ℃ . Thermal Protector Prevent Overheat.
	Test	From Coil to Motor, It Has to Pass 3 Test Procedures for Best Quality.

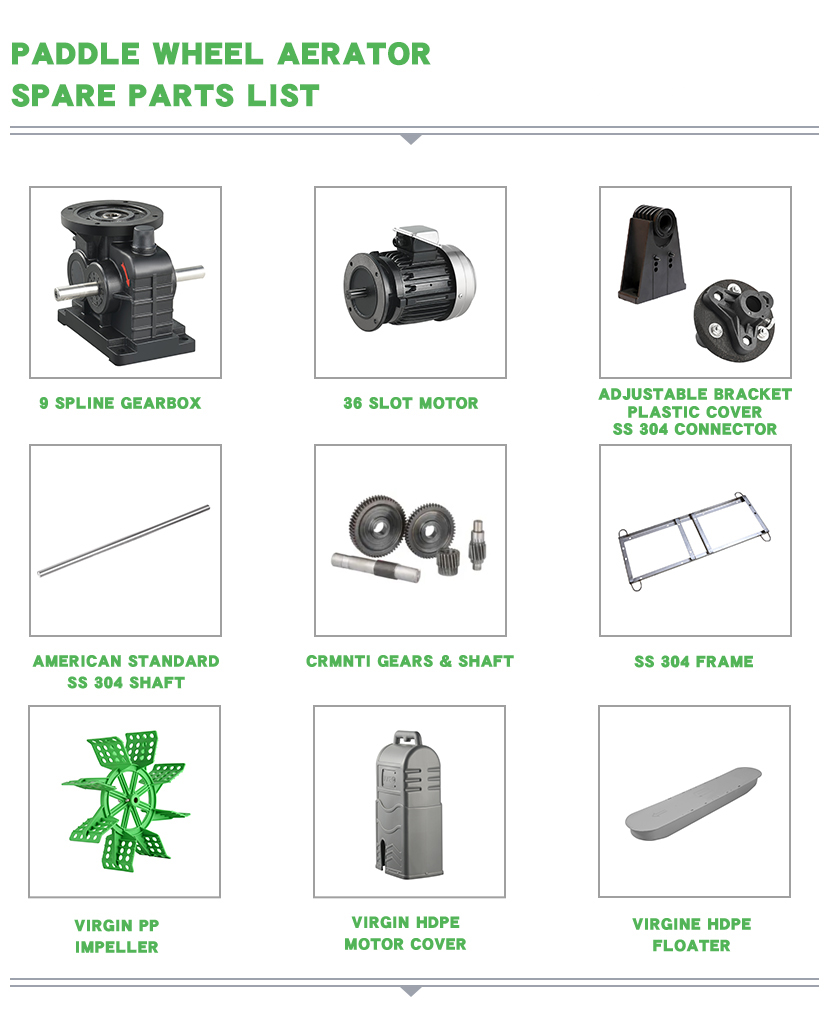

Gearbox	Style	Bevel Gear 9 Spline, 1:14/1:16
	Gear	Our CRMNTI Gears Machining Done by HMC Machine for Accurate Fitting & Perfect Output.
	Bearing	All Bearings Are Exclusive Customization. It Gives More Life Time to Gearbox and Support for Smooth Running.
	Test	100% Gear Box Pass Noise Test and Water Leakage Test.
	Shaft	SS304, 25mm
	Housing	PA66 Insert With Aluminum Skeleton
Accessories	Frame	American Standard Stainless Steel 304L
	Floater	Virgin HDPE With UV
	Impeller	Virgin PP With UV
	Motor Cover	Virgin HDPE With UV
	Shaft	Solid Stainless Steel 304L
	Support Bearing	Ball Bearing Virgin Nylon with 4% UV
	Connector	SS304L With High Quality Rubber
	Screw Bag	Stainless Steel 304L

Color	Customized Color
Warranty	12 Months
Usage	Shrimp/ Fish Farming Aeration
Power Efficiency	>1.25KG(KW.H)
Oxygen Capacity	>1.6KG/H
Weight	65KG
Volume	0.35CBM
20GP/40HQ	79SETS/196SETS

Main Features

1.Arcurate-bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models.
2. The accurate-bevel gear is made of chromium-manganese-titanium with carbon-nitrite surface treatment. Ensuring long usage life spans and high rigidity.
3. Mechanical seal is available to prevent oil leakage
4.High efficiency oxygen transferring ability with 2.5kgs O2/h
5.Have good water current circulation as the making of large Area water wave
6. Easy assessment,Operation and maintenance
7. Durable service life

* Not Only Selling You Aerator But also Professional Customize Aeration System for Your Pond.

You can get your own aeration system from our technical department after you provide us one of information as below:
1. Your ponds size, water depth, breeding density, aquaculture species.
2. Your target price for your ponds aeration system.
3. Your request of Oxygen per hour for your pond.

* Professional Sale Service : Make you NO-Worry for use.

1. Can customize quality level to match customer's target price.
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
